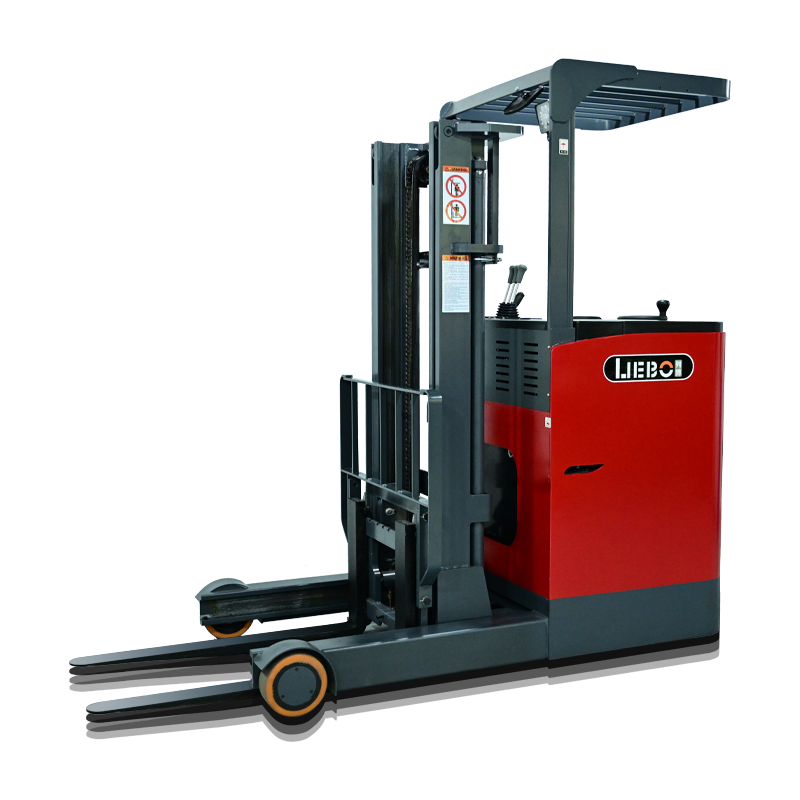

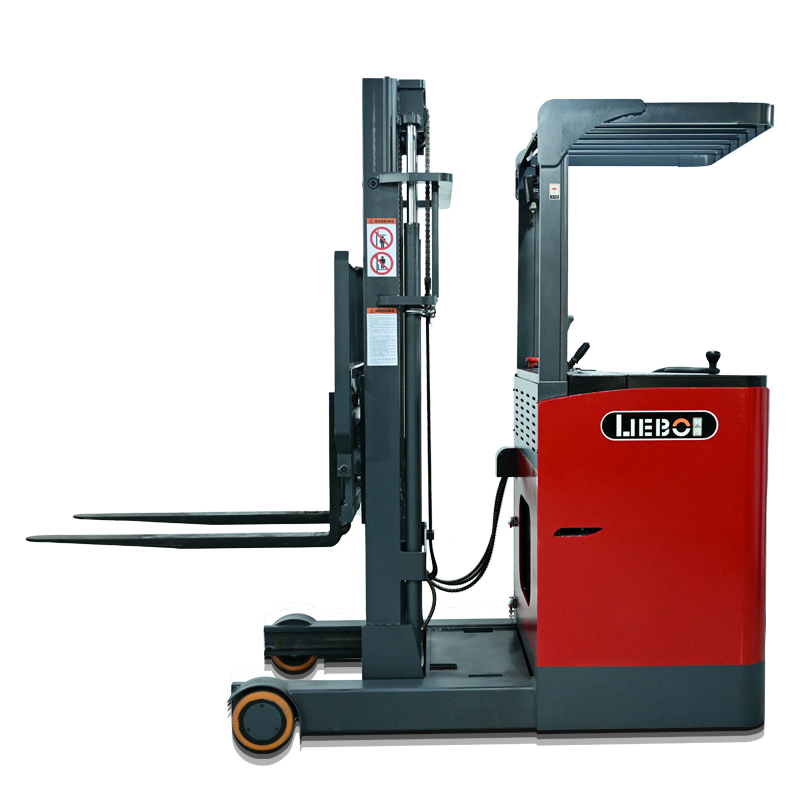

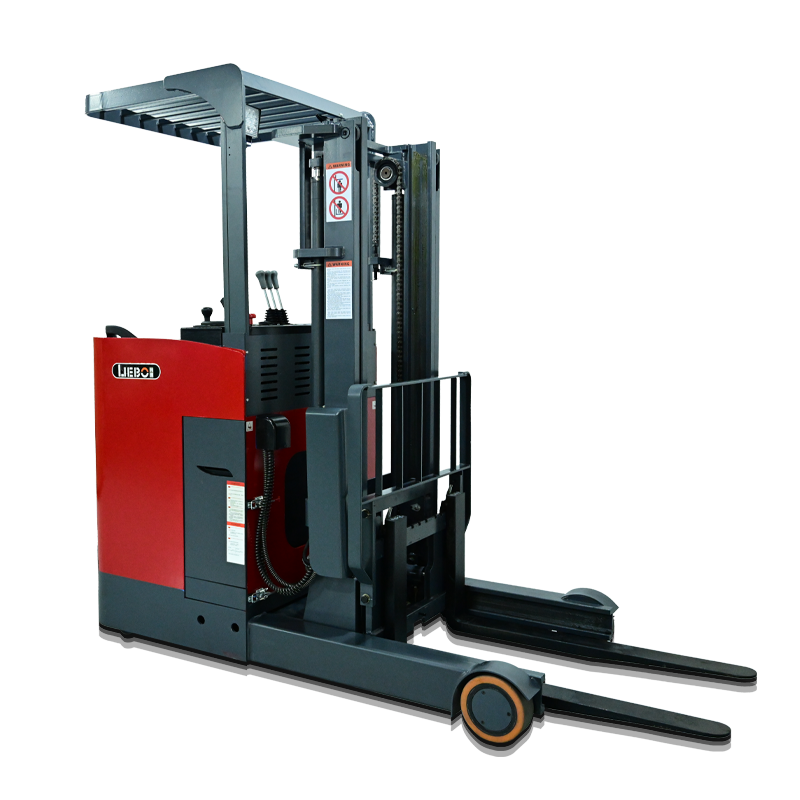

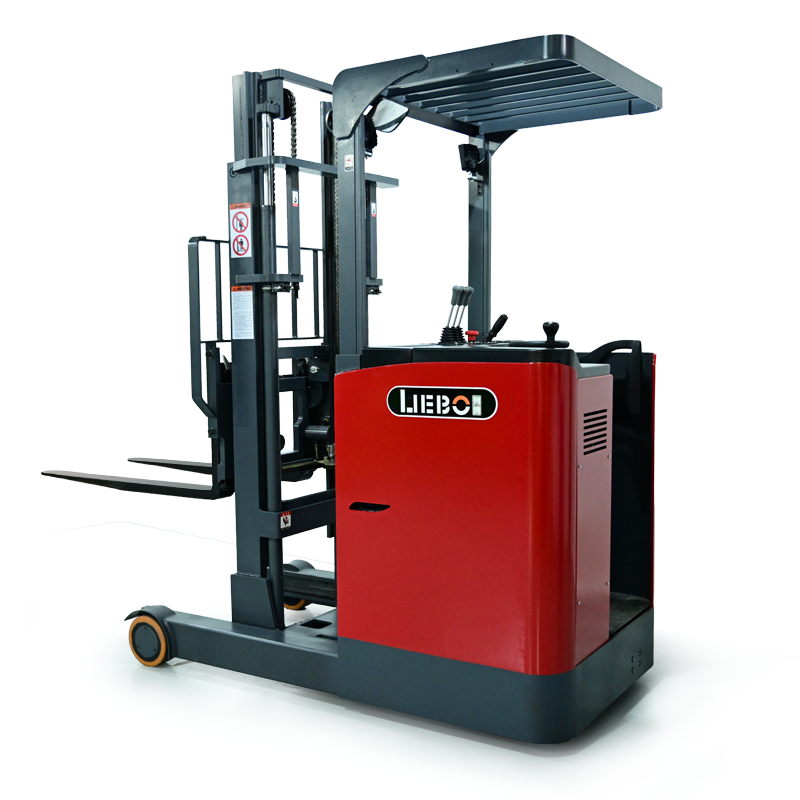

Best Selling Chinese Electric Reach Truck 2T 3000kg Lifting Height 3m 4m 5m 6m 8m 10m 12m with Factory Price
Model | Unit | CQD15 | CQD20 |
Loading Capacity | kg | 1500 | 2000 |
Loading Centre | mm | 500 | 500 |
weight | kg | 2200 | 2250 |
Max Lifting height | mm | 3000 | 3000 |
Fork dimensions | mm | 1070*100*35 | 1070*122*40 |
Fork spread | mm | 210-705 | 270-705 |
Reach distance | mm | 550 | 640 |
Overall length including fork | mm | 2245 | 2315 |
Overall width | S(mm) | 1090 | 1090 |
Height-Mast Lowered | HI(mm) | 2100 | 2100 |
Turning radius | Wa(mm) | 1670 | 1820 |
the height of overhead guards | mm | 2280 | 2280 |
Min groud clearance | mm | 70 | 70 |
Max travel speed | Km/h | 4~5 | 4~5 |
Grade ability | % | 6-8 | 6-8 |
Driving motor | KW | 2.5 | 2.5 |
charger-intelligent | V/A | 24/50 | 24/50 |
Lifting motor | KW | 3 | 3 |
Drive Controlling Type | 2.5(AC) | 2.5(AC) | |
Battery voltage | V/AH | 24V/400 | 24V/400 |
