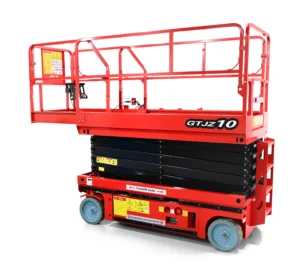

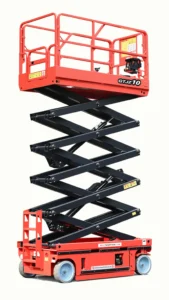

4-18m Aerial Work Platform Scissor Lift Platform
| Technical Parameters | ||||
| Product Code | MV42009 | MV42010 | MV42011 | MV42012 |
| Safe Working Load | 380 kg | 230 kg | 450 kg | 320 kg |
| Ext. Platform Safe Load | 115 kg | 115 kg | 115 kg | 115 kg |
| Max. Number of Workers | 2 | 2 | 2 | 2 |
| Max. Working Height | 8.00 m | 10.00 m | 10.00 m | 12.00 m |
| Max. Platform Height | 6.00 m | 8.00 m | 8.00 m | 10.00 m |
| Overall Length (B) | 2.48 m | 2.48 m | 2.48 m | 2.48 m |
| Overall Width (C) | 0.81 m | 0.81 m | 0.81 m | 0.81 m |
| Overall Height (Fixed Pallet) | 2.2 m | 2.34 m | 2.34 m | 2.47 m |
| Overall Height (Fixed Pallet)(A) | 1.75 m | 1.85 m | 1.85 m | 1.95 m |
| Platform Size | 2.27 m × 1.12 m | 2.27 m × 1.12 m | 2.27 m × 1.12 m | 2.27 m × 1.12 m |
| Platform Extension Size | 0.90 m × 1.12 m | 0.90 m × 1.12 m | 0.90 m × 1.12 m | 0.90 m × 1.12 m |
| Min. Ground Clearance (Retracted) | 0.1 m | 0.1 m | 0.1 m | 0.1 m |
| Min. Ground Clearance (Lifted) | 0.09 m | 0.09 m | 0.09 m | 0.09 m |
| Wheelbase | 1.87 m | 1.87 m | 1.87 m | 1.87 m |
| Min. Turning Radius (Inner Wheel) | 0 | 0 | 0 | 0 |
| Min. Turning Radius (Outer Wheel) | 2.10 m | 2.20 m | 2.20 m | 2.20 m |
| Lifting/Drive Motor | 24V / 3kW | 24V / 3kW | 24V / 3kW | 24V / 3kW |
| Travel Speed (Retracted) | 3.58 km/h | 3.58 km/h | 3.58 km/h | 3.58 km/h |
| Travel Speed (Lifted) | 0.84 km/h | 0.84 km/h | 0.84 km/h | 0.84 km/h |
| Lift/Lower Speed | 24/54 s | 28/40 s | 28/38 s | 45/36 s |
| Battery | 4×6V / 20Ah | 4×6V / 20Ah | 4×6V / 20Ah | 4×6V / 20Ah |
| Charger | 24V / 25A | 24V / 25A | 24V / 25A | 24V / 25A |
| Max. Gradability | 25% | 25% | 25% | 25% |
| Max. Allowable Working Angle | 2-3° | 2-3° | 2-3° | 2-3° |
| Tires | ￠381 × 127 mm | ￠381 × 127 mm | ￠381 × 127 mm | ￠381 × 127 mm |
| Machine Weight | 1840 kg | 2020 kg | 2280 kg | 2430 kg |
FAQ
Q1: How long is the Warranty for Jieliwell product?
A1: Jieliwell provides 12 months or 1000 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually Jieliwell producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: How about the continuous working time for the electric series forklifts ? And How long time to charge the battery full ?
A3: Jieliwell battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 – 12 hours to charge the battery, Jieliwell’s charger is automatic, after the battery is full, it will stop working automatically.
Q4: Can Jieliwell provide customized products? OEM products or ODM products?
A4: Yes, Jieliwell can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
Q5: What’s the specification of the chargers?
A5: Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases, 50/60HZ). Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.
Q6: Could we request our own color for the products?
A6: Yes, of course, you just need to offer us the RAL code.
